Heat insulation Aluminum foil bubble Laminated White Pe Film material for Heat insulation of houses

  • 500 - 999 Square Meters
    $2.80
  • 1000 - 4999 Square Meters
    $1.00
  • 5000 - 99999 Square Meters
    $0.66
  • >=100000 Square Meters
    $0.30
Type:
Heat insulation
Lead Time:
Quantity(Square Meters) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 7 15 Negotiable
Customization:
Customized logo (Min. Order: 1000 Square Meters)
Customized packaging (Min. Order: 1000 Square Meters)

More

Graphic customization (Min. Order: 1000 Square Meters) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
3 years
After-sale Service:
Online Technical Support
Project Solution Capability:
Cross Categories Consolidation
Place of Origin:
Guangdong, China
Brand Name:
PCY
Model Number:
PCY-BWR-001
Product Name:
AL Foil Bubble Heat Insulation Material
Type:
Other Heat Insulation Materials
Material Structure:
Aluminum Foil +bubble + Aluminum Foil
Color:
Silver or custom
Thermal conductivity:
0.032W/mk
Length:
customized
Width:
1-1.6m or customized
Density:
10kg/m3 to 50kg/m3
Usage:
House Wall
Certificate:
SGS,ISO9001, OHSAS1800, 14000
Supply Ability
Supply Ability:
10000 Square Meter/Square Meters per Day

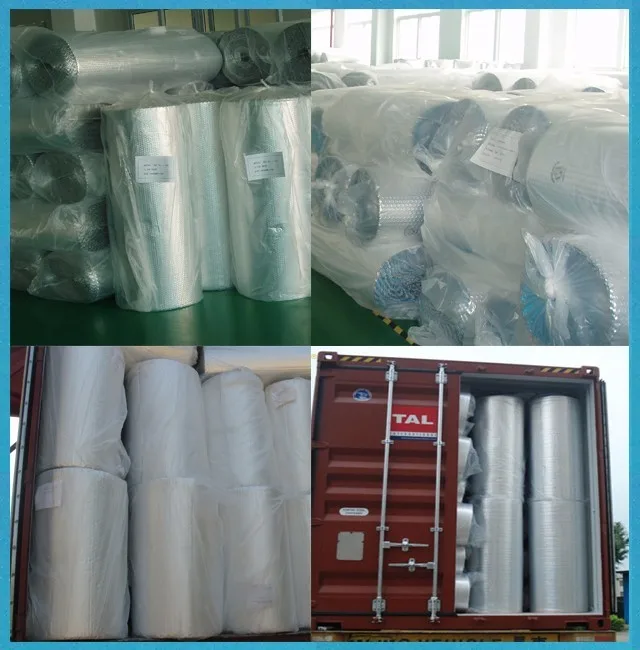

Packaging & Delivery
Packaging Details
Roll or as client's request custom package
Port
ShenZhen
Lead Time :
Quantity(Square Meters) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 7 15 To be negotiated
Product Description

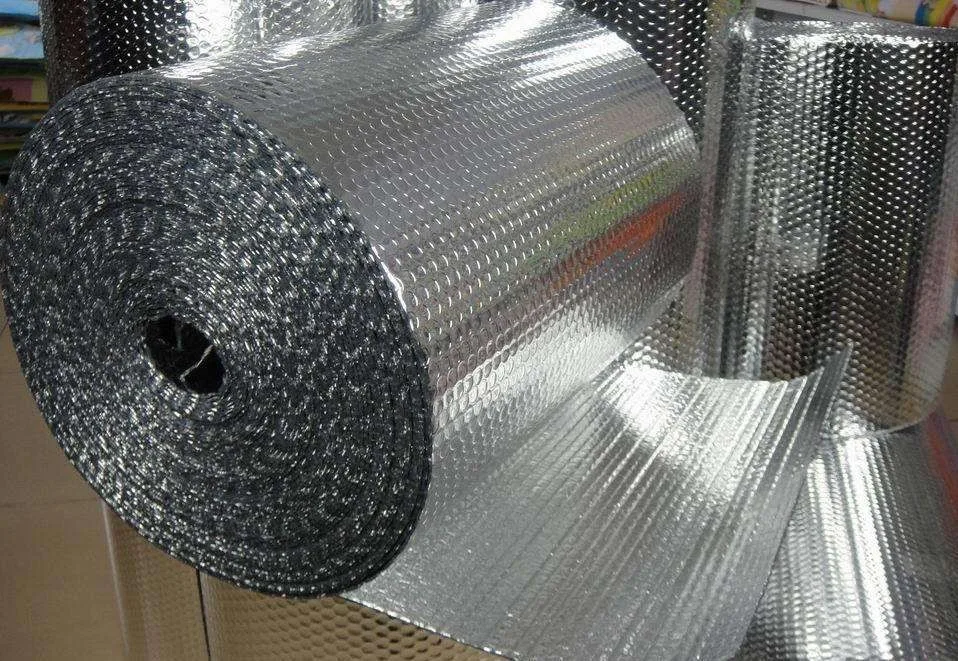

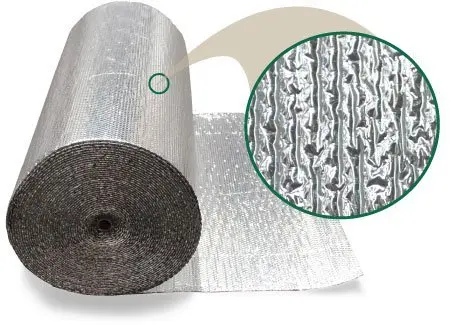

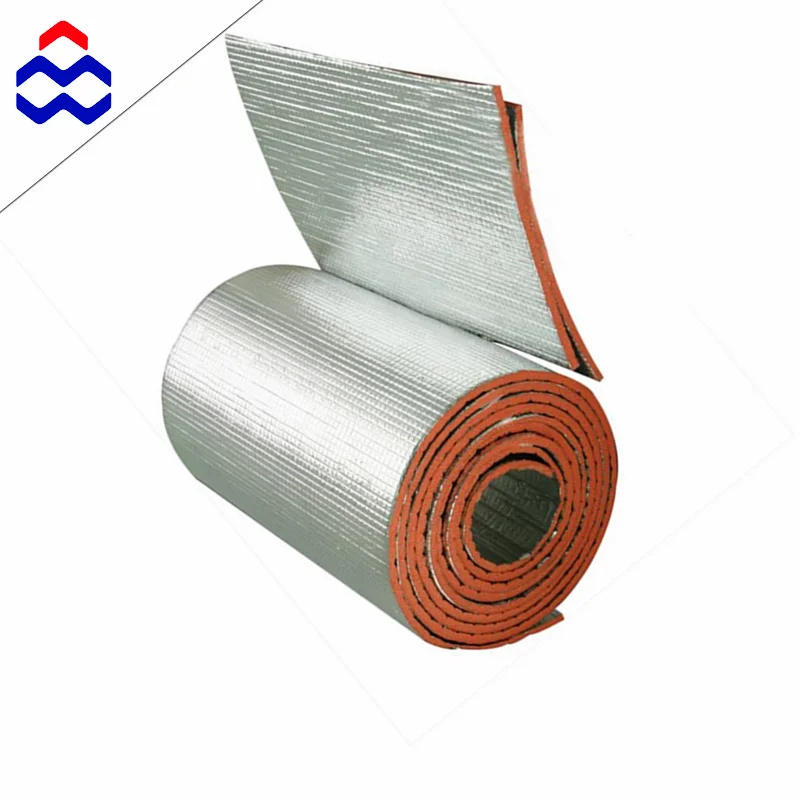

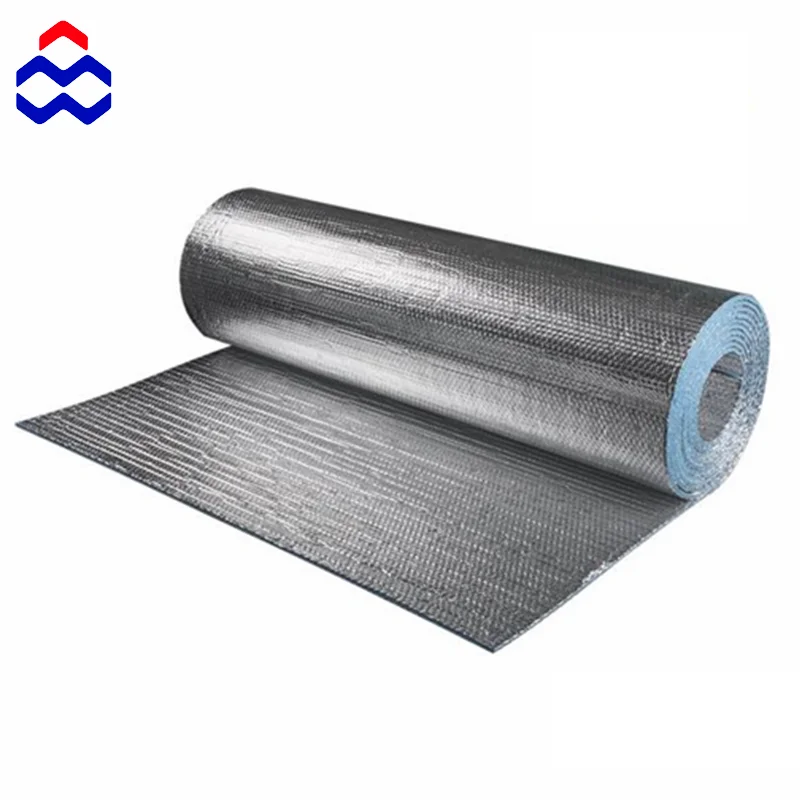

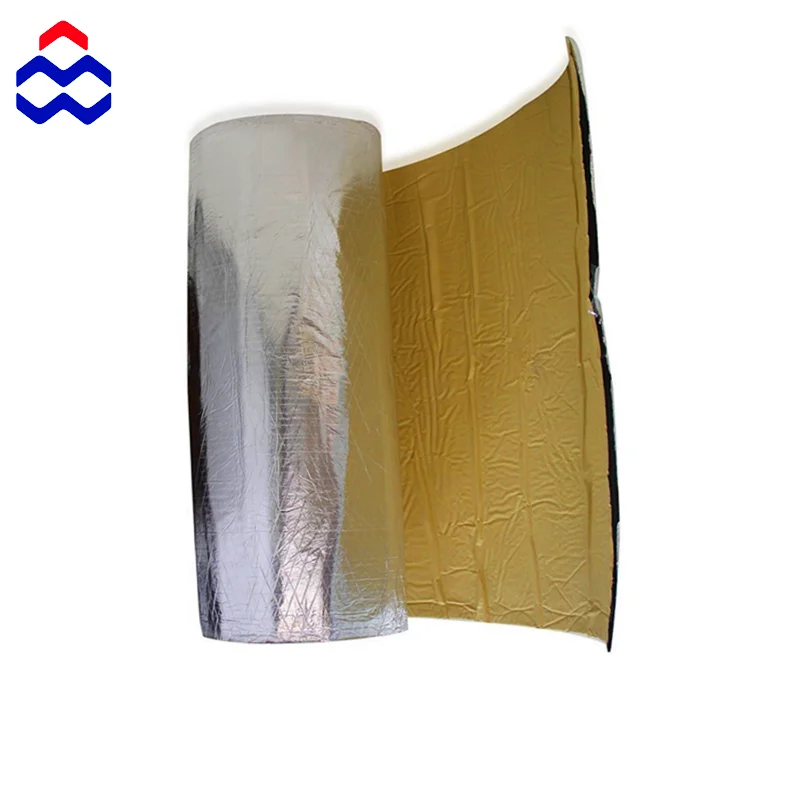

 Heat Insulation Aluminum Foil Bubble Materials Laminated White Pe Film


The product consists of two layers of aluminum foil with plastic bubble laminated between the aluminum foil,
provides excellent insulation: Reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection and radiation. The two side aluminum foil forms an effective barrier against moisture,air currents and vapors.

It is an economical solution for a wide range of industrial, manufacturing and consumer applications.

MainMaterial :

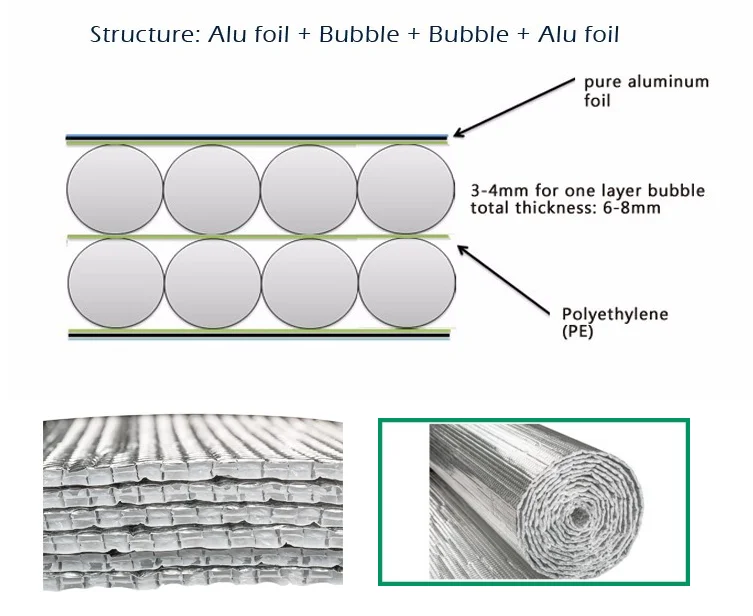

AL+Bubble+Bubble+AL
Other material structure:
MPET+(single/double) air bubble
MPET+(single/double) air bubble
Alu+(single/double) air bubble+PE
Alu+(single/double) air bubble+Alu
Alu+ PET+(single/double) air bubble+PET+Alu
Size:
Customized(Width 1.6M, Length no limited)
Bubble Size:
Diameter : 10mm, H: 3mm
Color:
Silver
MPET/ Al Foil Thickness:
12micron/7 micron
Product Thickness:
2mm-10mm
Reflectivity:
92%~97%
Normal Roll size:
1.2m *30m/roll ; 1.2m *40m/roll; 1.35m *22.25m/roll;  can be customized
Packing:
1 roll/ clear plastic bag or customized logo printing packing bag accept

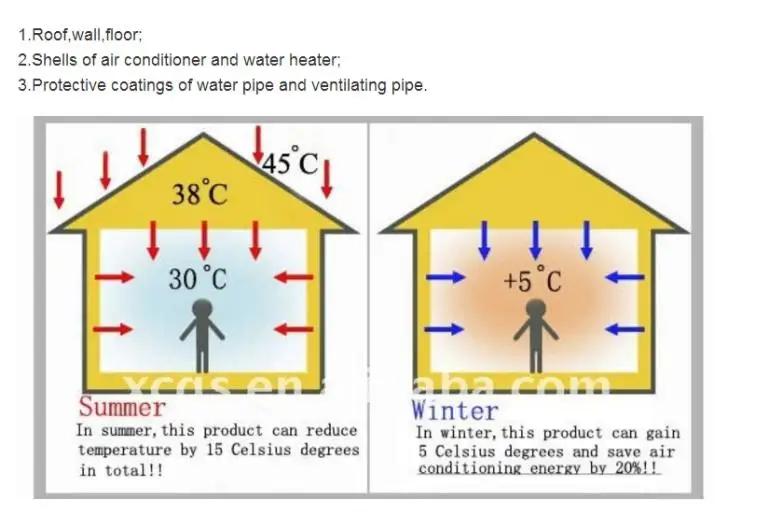

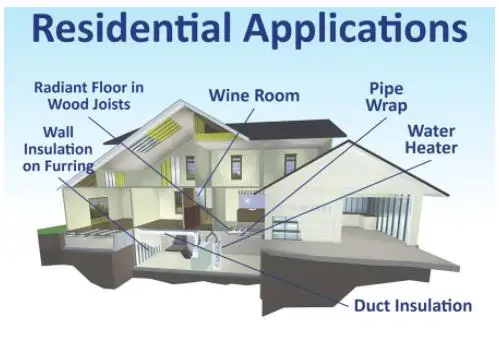

Application
Roof,Wall,Floor,Pipeline
Packing & Delivery
Samples
Cost
1.Free samples available from our stock.
2.Sample cost can be returned.
time
1. Within 24 hours for samples available from our stock.
2. About 3-5 days for custom samples.
Price Terms
EXW, FOB,CIF, CNF.30% Initial Deposit; 70% Balance of Payment Before Shipment
Payment Terms
30%deposit full plates fee,70%balance before shipping.
Delivery Date
15 working days after sample approved.
Payment Method
PayPal / MoneyGram / Western Union / T/T / L/C
Packing
standard export carton or as request
Related Product

Products Name with link

Products Name with link


Products Name with link

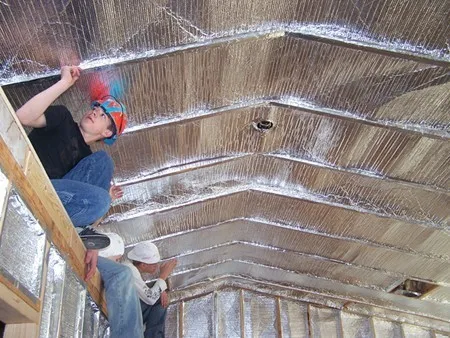

Installation methods

1.Measure the metal roof to determine the amount of bubble foil wrap insulation required for the project. Purchase approximately 10 to 15 percent more product than required to account for overlapping and to provide the proper air gap between the purlins -- the horizontal lengths of wood that support the roof panels between the rafters.

2.Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil wrap insulation and attach it to the first purlin. Continue to unroll the foil insulation and attach it the remaining purlins, paying attention to allow the insulation to sag at least 1 inch between the horizontal members. The sagging provides an air gap that raises the insulation's efficiency.

3.Continue to attach the Aluminum foil bubble insulation to the metal roofing purloins, overlapping the adjoining sheets 2 inches as you go. This is a temporary hold to keep the bubble foil wrap in place while you prepare the next step.

4.Secure the bubble foil to the framing members with furring strips. Attach the furring strips perpendicular to the purloins every 24 inches to the framing members with 2-inch metal screws, paying attention to not disrupt the insulation's sagging. Use a drill equipped with a screwdriver bit to drive the screws into the framing members.

5.Cover the seams of the bubble insulation with foil tape.

FAQ

1.Q:Are you a manufacturer or trading company?
We are professional manufacturer.
We are specialized in bubble mailer bag and Antistatic bag for about 20 years.

2.Q:What information should I let you know to get a completed quotation?
1)What kind of materials.
2)The size of the film(length*width*height),including the thickness.
3)Printing colors. Original printing picture or drawings will be best.
4)The order quantity.
5)Is standard bag or special design.

3.Q: How do I get a sample and how long?
1)For standard products, we will send you one for free if we have in stock.
2)For customized sample, we need to charge the cost.
3)1 day for sample in warehouse, 5-7 days for customized sample.

4.Q:What's the quotation and payment terms?
1)We quote EXW, FOB, CIF price.
2)TT 30% deposit in advance, balance should be paid before delivery.
3)We accept TT, LC, Paypal, Western Union etc.

5.Q:How does your factory do regarding quality control?
"Quality is priority."We aways attach great importance to quality
controlling from the beginning to the end.

6.Q:What's your world brand customer?
They are Inter,Sony, Foxconn, IBM, etc
